| 技術特性 | |
| 額定電壓 | 100V AC，DC |
| 額定電流 | 2A AC, DC |
| 接觸電阻 | 20m max |
| 絕緣電阻 | 1000M min |
| 耐壓 | 800V AC/minute |
| 環境溫度 | -25°C?+85°C |
| 材料 | |
| 插座 | 尼龍UL94-V0(2) |
| 插頭 | 尼龍UL94-V0(2) |

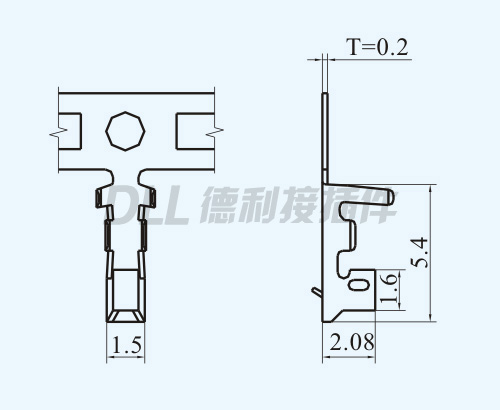

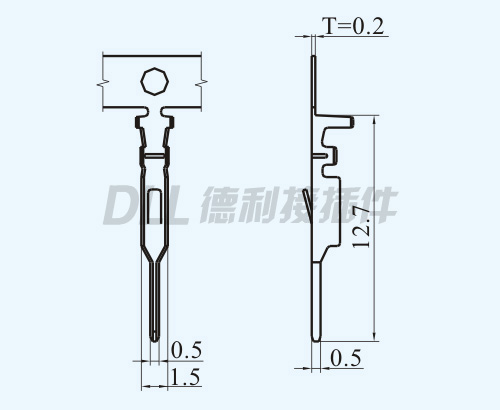

| 端子 | 磷青銅,鍍錫 |
參考圖紙
Rosh
MSDS

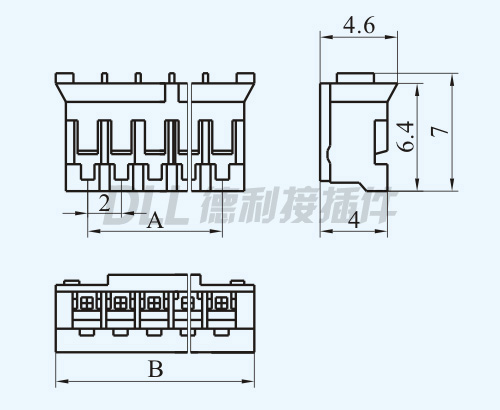

| 電路 | 類型 | 尺寸 | |
| A | B | ||
| 2 | PH-2Y | 2.0 | 5.8 |
| 3 | PH-3Y | 4.0 | 7.8 |
| 4 | PH-4Y | 6.0 | 9.8 |
| 5 | PH-5Y | 8.0 | 11.8 |
| 6 | PH-6Y | 10.0 | 13.8 |
| 7 | PH-7Y | 12.0 | 15.8 |
| 8 | PH-8Y | 14.0 | 17.8 |
| 9 | PH-9Y | 16.0 | 19.8 |
| 10 | PH-10Y | 18.0 | 21.8 |
| 11 | PH-11Y | 20.0 | 23.8 |
| 12 | PH-12Y | 22.0 | 25.8 |
| 13 | PH-13Y | 24.0 | 27.8 |
| ~ | ~ | ~ | ~ |
| 18 | PH-18Y | 34.0 | 37.8 |

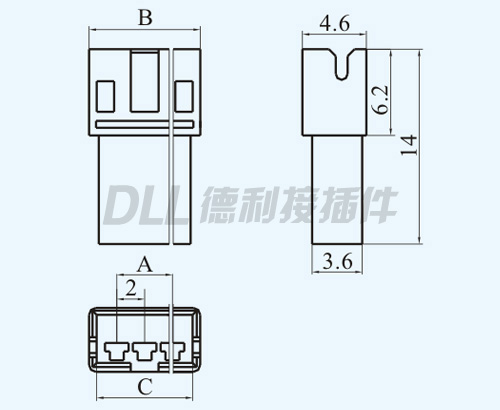

| 電路 | 類型 | 尺寸 | ||
| A | B | C | ||
| 2 | PH-2R | 2.0 | 6.0 | 4.9 |
| 3 | PH-3R | 4.0 | 8.0 | 6.9 |
| 4 | PH-4R | 6.0 | 10.0 | 8.9 |
| 5 | PH-5R | 8.0 | 12.0 | 10.9 |
| 6 | PH-6R | 10.0 | 14.0 | 12.9 |
| 7 | PH-7R | 12.0 | 16.0 | 14.9 |
| 8 | PH-8R | 14.0 | 18.0 | 16.9 |
| 9 | PH-9R | 16.0 | 20.0 | 18.9 |
| 10 | PH-10R | 18.0 | 22.0 | 20.9 |
| 11 | PH-11R | 20.0 | 24.0 | 22.9 |
| 12 | PH-12R | 22.0 | 26.0 | 24.9 |
| 13 | PH-13R | 24.0 | 28.0 | 26.9 |
| ~ | ~ | ~ | ~ | ~ |
| 18 | PH-18R | 34.0 | 38.0 | 36.9 |
