| 技術特性 | |
| 額定電壓 | 100V AC，DC |
| 額定電流 | 2A AC, DC |
| 接觸電阻 | 20m max |
| 絕緣電阻 | 1000M min |
| 耐壓 | 800V AC/minute |
| 環(huán)境溫度 | -25°C?+85°C |
| 材料 | |
| 孔座 | 尼龍UL94-V0(2) |
| 針座 | 尼龍UL94-V0(2) |
| 端子 | 磷青銅,鍍錫 |

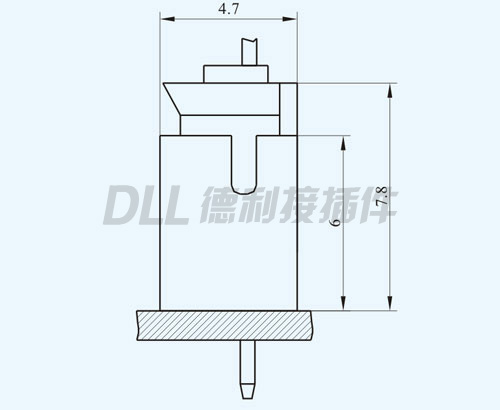

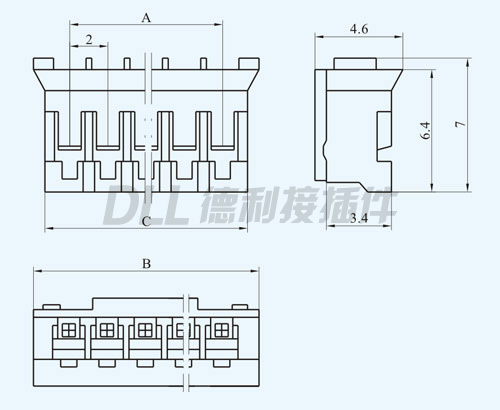

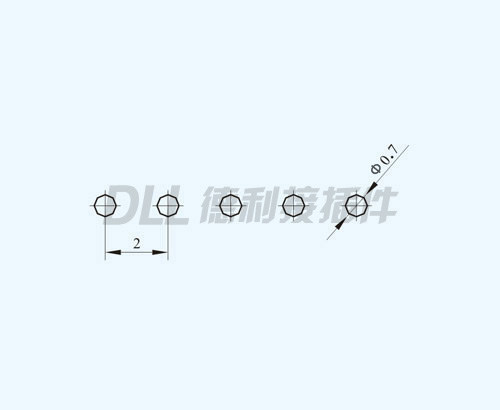

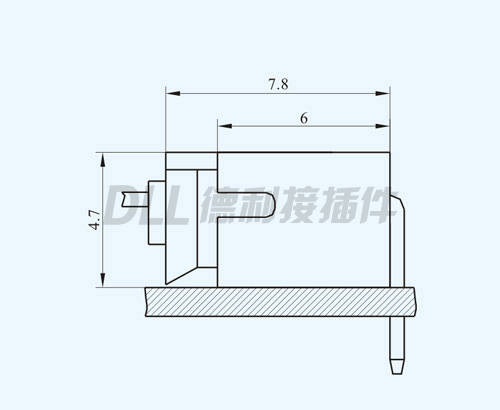

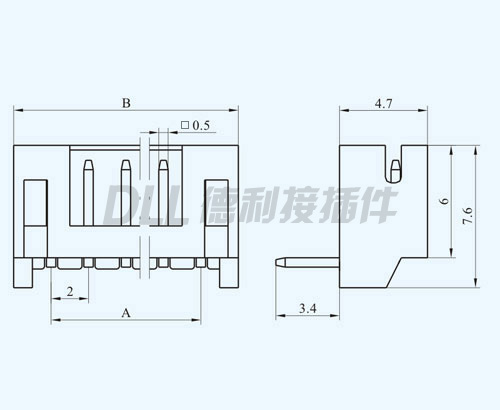

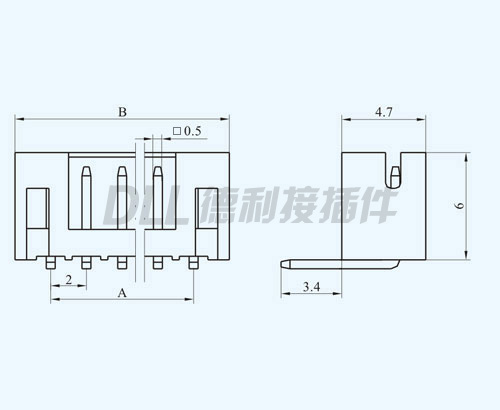

參考圖紙
Rosh
MSDS
| 電路 | 類型 | 尺寸(mm) | |
| A | B | ||
| 2 | PH-2A/PH-2AW/PH-2AWD | 2.00 | 6.00 |
| 3 | PH-3A/PH-3AW/PH-3AWD | 4.00 | 8.00 |
| 4 | PH-4A/PH-4AW/PH-4AWD | 6.00 | 10.00 |
| 5 | PH-5A/PH-5AW/PH-5AWD | 8.00 | 12.00 |
| 6 | PH-6A/PH-6AW/PH-6AWD | 10.00 | 14.00 |
| 7 | PH-7A/PH-7AW/PH-7AWD | 12.00 | 16.00 |
| 8 | PH-8A/PH-8AW/PH-8AWD | 14.00 | 18.00 |
| 9 | PH-9A/PH-9AW/PH-9AWD | 16.00 | 20.00 |
| 10 | PH-10A/PH-10AW/PH-10AWD | 18.00 | 22.00 |
| 11 | PH-11A/PH-11AW/PH-11AWD | 20.00 | 24.00 |
| 12 | PH-12A/PH-12AW/PH-12AWD | 22.00 | 26.00 |
| 13 | PH-13A/PH-13AW/PH-13AWD | 24.00 | 28.00 |
| 14 | PH-14A/PH-14AW/PH-14AWD | 26.00 | 30.00 |
| 15 | PH-15A/PH-15AW/PH-15AWD | 28.00 | 32.00 |
| ~ | ~ | ~ | ~ |
| 18 | PH-18A/PH-18AW/PH-18AWD | 34.00 | 38.00 |
| 電路 | 類型 | 尺寸(mm) | ||
| A | B | C | ||
| 2 | PH-2Y | 2.00 | 5.80 | 4.55 |
| 3 | PH-3Y | 4.00 | 7.80 | 6.55 |
| 4 | PH-4Y | 6.00 | 9.80 | 8.55 |
| 5 | PH-5Y | 8.00 | 11.80 | 10.55 |
| 6 | PH-6Y | 10.00 | 13.80 | 12.55 |
| 7 | PH-7Y | 12.00 | 15.80 | 14.55 |
| 8 | PH-8Y | 14.00 | 17.80 | 16.55 |
| 9 | PH-9Y | 16.00 | 19.80 | 18.55 |
| 10 | PH-10Y | 18.00 | 21.80 | 20.55 |
| 11 | PH-11Y | 20.00 | 23.80 | 22.55 |
| 12 | PH-12Y | 22.00 | 25.80 | 24.55 |
| 13 | PH-13Y | 24.00 | 27.80 | 26.55 |
| 14 | PH-14Y | 26.00 | 29.80 | 28.55 |
| 15 | PH-15Y | 28.00 | 31.80 | 30.55 |
| ~ | ~ | ~ | ~ | ~ |
| 18 | PH-18Y | 34.00 | 37.80 | 36.55 |
