Wire To Board Dip Connector
| Specifications | |
| Rated voltage | 300V AC，DC |
| Rated current | 9A AC, DC |
| Contact resistance | 20m max |
| Insulation resistance | 1000M min |
| Withstand voltage | 1500V AC/minute |
| Ambient temperature | -25°C?+85°C |
| Materials | |
| Housing | (Nylon)UL94-V0(2) |
| Wafer | (Nylon)UL94-V0(2) |
| Terminal | Phosphor bronze,Tin plated |

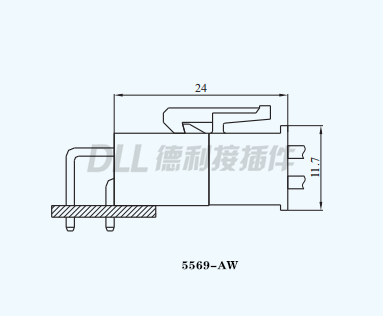

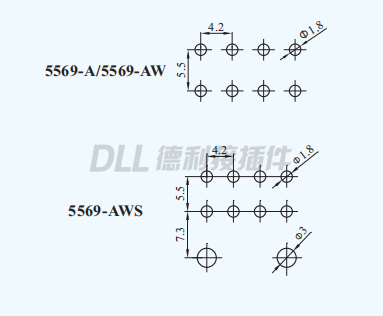

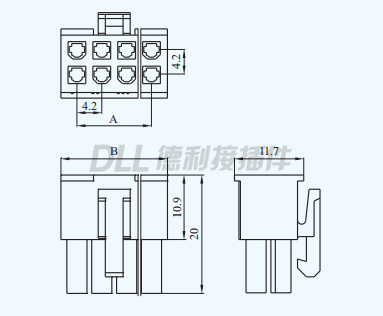

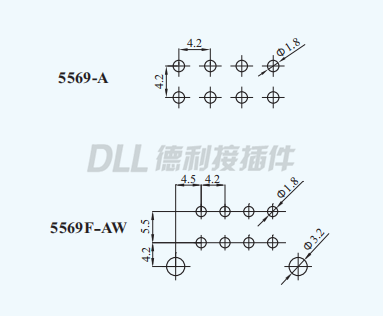

Drawing
Rosh
MSDS
| Circuits | Type | Dimensions(mm) | |
| A | B | ||
| 2x1 | 5569/5569F-2A/5569/5569F-2AW/5569/5569F-2AWS | / | 5.40 |
| 2x2 | 5569/5569F-4A/5569/5569F-4AW/5569/5569F-4AWS | 4.20 | 9.60 |
| 2x3 | 5569/5569F-6A/5569/5569F-6AW/5569/5569F-6AWS | 8.40 | 13.80 |
| 2x4 | 5569/5569F-8A/5569/5569F-8AW/5569/5569F-8AWS | 12.60 | 18.00 |
| 2x5 | 5569/5569F-10A/5569/5569F-10AW/5569/5569F-10AWS | 16.80 | 22.20 |
| 2x6 | 5569/5569F-12A/5569/5569F-12AW/5569/5569F-12AWS | 21.00 | 26.40 |
| 2x7 | 5569/5569F-14A/5569/5569F-14AW/5569/5569F-14AWS | 25.20 | 30.60 |
| 2x8 | 5569/5569F-16A/5569/5569F-16AW/5569/5569F-16AWS | 29.40 | 34.80 |
| 2x9 | 5569/5569F-18A/5569/5569F-18AW/5569/5569F-18AWS | 33.60 | 39.00 |
| 2x10 | 5569/5569F-20A/5569/5569F-20AW/5569/5569F-20AWS | 37.80 | 43.20 |
| 2x11 | 5569/5569F-22A/5569/5569F-22AW/5569/5569F-22AWS | 42.00 | 47.40 |
| 2x12 | 5569/5569F-24A/5569/5569F-24AW/5569/5569F-24AWS | 46.20 | 51.60 |
| Circuits | Type | Dimensions(mm) | |
| A | B | ||
| 2x1 | 5557-2Y | / | 5.40 |
| 2x2 | 5557-4Y | 4.20 | 9.60 |
| 2x3 | 5557-6Y | 8.40 | 13.80 |
| 2x4 | 5557-8Y | 12.60 | 18.00 |
| 2x5 | 5557-10Y | 16.80 | 22.20 |
| 2x6 | 5557-12Y | 21.00 | 26.40 |
| 2x7 | 5557-14Y | 25.20 | 30.60 |
| 2x8 | 5557-16Y | 29.40 | 34.80 |
| 2x9 | 5557-18Y | 33.60 | 39.00 |
| 2x10 | 5557-20Y | 37.80 | 43.20 |
| 2x11 | 5557-22Y | 42.00 | 47.40 |
| 2x12 | 5557-24Y | 46.20 | 51.60 |
