Wire To Board Dip Connector
| Specifications | |
| Rated voltage | 250V AC，DC |
| Rated current | 7A AC, DC |
| Contact resistance | 20m max |
| Insulation resistance | 1000M min |
| Withstand voltage | 1500V AC/minute |
| Ambient temperature | -25°C?+85°C |
| Materials | |
| Housing | (Nylon)UL94-V0(2) |
| Wafer | (Nylon)UL94-V0(2) |
| Terminal | Phosphor bronze,Tin plated |

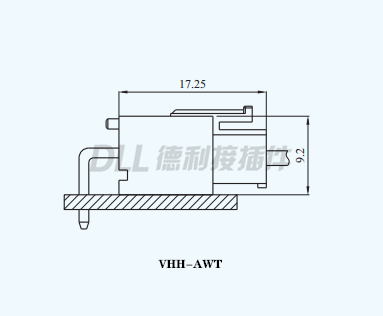

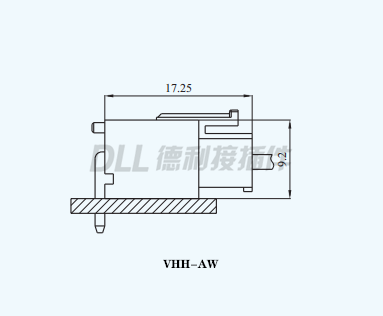

Drawing
Rosh
MSDS
| Circuits | Type | Dimensions(mm) | ||
| A | B | C | ||
| 2 | VHH-2AS/VHH-2AW/VHH-2AWT | 3.96 | 9.80 | 8.40 |
| 3 | VHH-3AS/VHH-3AW/VHH-3AWT | 7.92 | 13.76 | 12.36 |
| 4 | VHH-4AS/VHH-4AW/VHH-4AWT | 11.88 | 17.72 | 16.32 |
| 5 | VHH-5AS/VHH-5AW/VHH-5AWT | 15.84 | 21.68 | 20.28 |
| 6 | VHH-6AS/VHH-6AW/VHH-6AWT | 19.80 | 25.64 | 24.24 |
| 7 | VHH-7AS/VHH-7AW/VHH-7AWT | 23.76 | 29.60 | 28.20 |
| 8 | VHH-8AS/VHH-8AW/VHH-8AWT | 27.72 | 33.56 | 32.16 |
| 9 | VHH-9AS/VHH-9AW/VHH-9AWT | 31.68 | 37.52 | 36.12 |
| 10 | VHH-10AS/VHH-10AW/VHH-10AWT | 35.64 | 41.48 | 40.08 |
| 11 | VHH-11AS/VHH-11AW/VHH-11AWT | 39.60 | 45.44 | 44.04 |
| 12 | VHH-12AS/VHH-12AW/VHH-12AWT | 43.56 | 49.40 | 48.00 |
| 13 | VHH-13AS/VHH-13AW/VHH-13AWT | 47.52 | 53.36 | 51.96 |
|
14 |
VHH-14AS/VHH-14AW/VHH-14AWT |
51.48 | 57.32 | 55.92 |
| 15 |
VHH-15AS/VHH-15AW/VHH-15AWT |
55.44 | 61.28 | 59.88 |
| Circuits | Type | Dimensions(mm) | |
| A | B | ||
| 2 | VHH-2Y | 3.96 | 7.92 |
| 3 | VHH-3Y | 7.92 | 11.88 |
| 4 | VHH-4Y | 11.88 | 15.84 |
| 5 | VHH-5Y | 15.84 | 19.80 |
| 6 | VHH-6Y | 19.80 | 23.76 |
| 7 | VHH-7Y | 23.76 | 27.72 |
| 8 | VHH-8Y | 27.72 | 31.68 |
| 9 | VHH-9Y | 31.68 | 35.64 |
| 10 | VHH-10Y | 35.64 | 39.60 |
| 11 | VHH-11Y | 39.60 | 43.56 |
| 12 | VHH-12Y | 43.56 | 47.52 |
| 13 | VHH-13Y | 47.52 | 51.48 |
|
14 |
VHH-14Y |
51.48 | 55.44 |
| 15 |
VHH-15Y |
55.44 | 59.40 |
