Wire To Board Dip Connector
| Specifications | |
| Rated voltage | 250V AC，DC |
| Rated current | 7A AC, DC |
| Contact resistance | 20m max |
| Insulation resistance | 1000M min |
| Withstand voltage | 1500V AC/minute |
| Ambient temperature | -25°C?+85°C |
| Materials | |
| Housing | (Nylon)UL94-V0(2) |
| Wafer | (Nylon)UL94-V0(2) |
| Terminal | Phosphor bronze,Tin plated |
| Lock |
(Nylon)UL94-V0(2) |

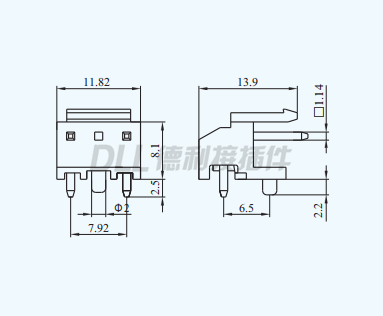

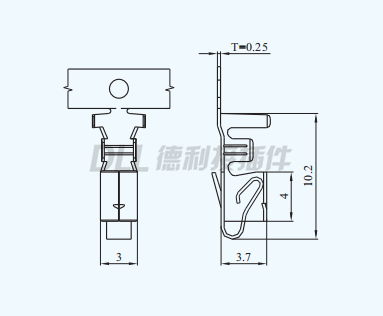

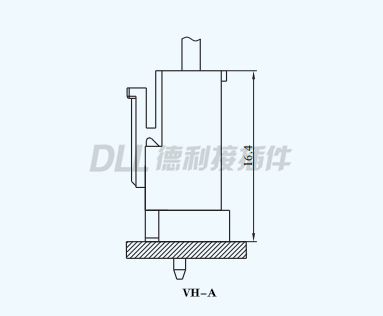

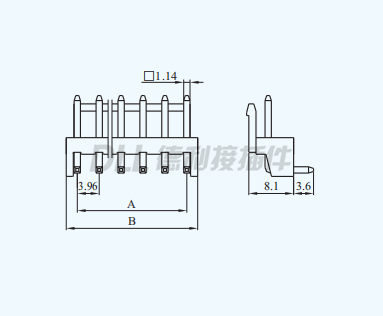

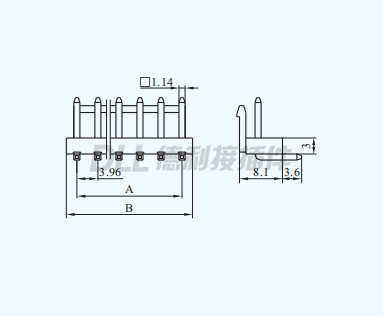

Drawing
Rosh
MSDS

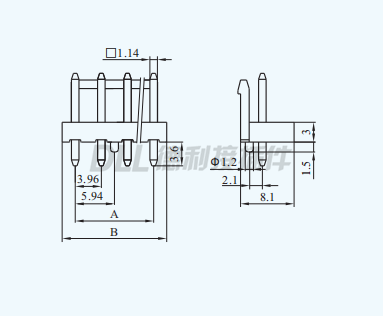

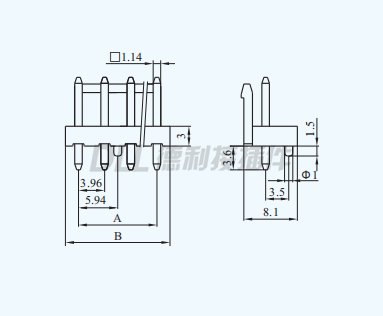

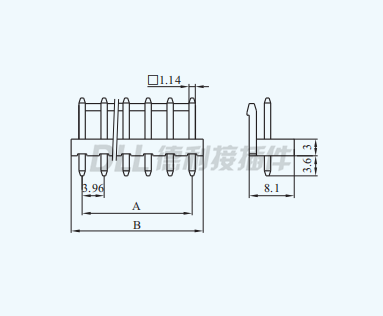

| Circuits | Type | Dimensions(mm) | ||
| A | B | |||
| 2 | VH-2AS/VH-2AW/VH-2AWT/VH-2AWF | VH-2Y | 3.96 | 7.92 |
| 3 | VH-3AS/VH-3AW/VH-3AWT/VH-3AWF | VH-3Y | 7.92 | 11.88 |
| 4 | VH-4AS/VH-4AW/VH-4AWT/VH-4AWF | VH-4Y | 11.88 | 15.84 |
| 5 | VH-5AS/VH-5AW/VH-5AWT/VH-5AWF | VH5Y | 15.84 | 19.80 |
| 6 | VH-6AS/VH-6AW/VH-6AWT/VH-6AWF | VH-6Y | 19.80 | 23.76 |
| 7 | VH-7AS/VH-7AW/VH-7AWT/VH-7AWF | VH-7Y | 23.76 | 27.72 |
| 8 | VH-8AS/VH-8AW/VH-8AWT/VH-8AWF | VH-8Y | 27.72 | 31.68 |
| 9 | VH-9AS/VH-9AW/VH-9AWT/VH-9AWF | VH-9Y | 31.68 | 35.64 |
| 10 | VH-10AS/VH-10AW/VH-10AWT/VH-10AWF | VH-10Y | 35.64 | 39.60 |
| 11 | VH-11AS/VH-11AW/VH-11AWT/VH-11AWF | VH-11Y | 39.60 | 43.56 |
| 12 | VH-12AS/VH-12AW/VH-12AWT/VH-12AWF | VH-12Y | 43.56 | 47.52 |
| 13 | VH-13AS/VH-13AW/VH-13AWT/VH-13AWF | VH-13Y | 47.52 | 51.48 |
| 14 | VH-14AS/VH-14AW/VH-14AWT/VH-14AWF | VH-14Y | 51.48 | 55.44 |
| 15 | VH-15AS/VH-15AW/VH-15AWT/VH-15AWF | VH-15Y | 55.44 | 59.40 |

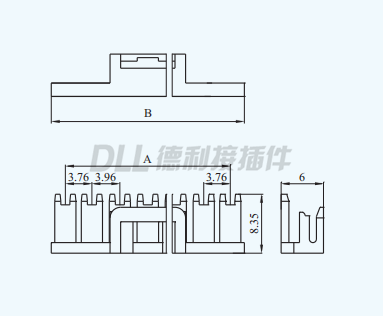

| Circuits | Type | Dimensions(mm) | |
| A | B | ||
| 2 | VH-2S | 3.70 | 6.70 |
| 3 | VH-3S | 7.66 | 10.66 |
| 4 | VH-4S | 11.62 | 14.62 |
| 5 | VH-5S | 15.58 | 18.58 |
| 6 | VH-6S | 19.54 | 22.54 |
| 7 | VH-7S | 23.50 | 26.50 |
| 8 | VH-8S | 27.46 | 30.46 |
| 9 | VH-9S | 31.42 | 34.42 |
| 10 | VH-10S | 35.38 | 38.38 |
| 11 | VH-11S | 39.34 | 42.34 |
| 12 | VH-12S | 43.30 | 46.30 |
| 13 | VH-13S | 47.26 | 50.26 |
| 14 | VH-14S | 51.22 | 54.22 |
| 15 | VH-15S | 55.18 | 58.18 |
