Wire To Board Dip Connector
| Specifications | |
| Rated voltage | 250V AC，DC |
| Rated current | 3A AC, DC |
| Contact resistance | 20m max |
| Insulation resistance | 1000M min |
| Withstand voltage | 800V AC/minute |
| Ambient temperature | -25°C?+85°C |
| 材料 | |
| Housing | (Nylon)UL94-V0(2) |
| Wafer | (Nylon)UL94-V0(2) |
| Terminal | Phosphor bronze,Tin plated |

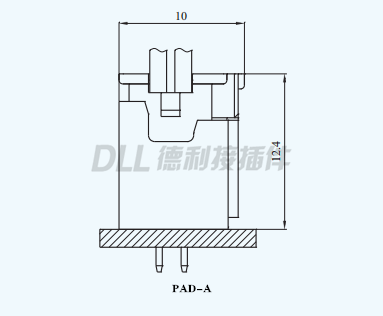

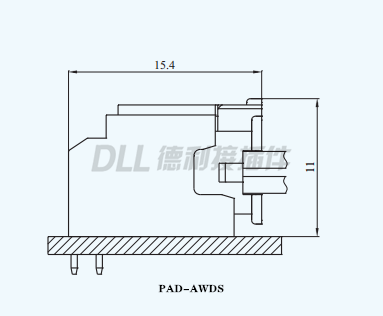

Drawing
Rosh
MSDS

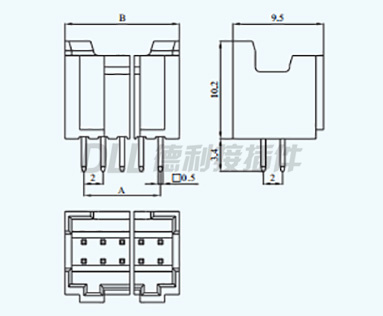

| Circuits | Type | Demensions(mm) | ||
| A | B | |||
| 2x2 | PAD-4A/PAD-4AS/PAD-4AWDS | 2.00 | 6.00 | |
| 2x3 | PAD-6A/PAD-6AS/PAD-6AWDS | 4.00 | 8.00 | |
| 2x4 | PAD-8A/PAD-8AS/PAD-8AWDS | 6.00 | 10.00 | |
| 2x5 | PAD-10A/PAD-10AS/PAD-10AWDS | 8.00 | 12.00 | |
| 2x6 | PAD-12A/PAD-12AS/PAD-12AWDS | 10.00 | 14.00 | |
|
2x7 |
PAD-14A/PAD-14AS/PAD-14AWDS | 12.00 | 16.00 | |
| 2x8 | PAD-16A/PAD-16AS/PAD-16AWDS | 14.00 | 18.00 | |
| 2x9 | PAD-18A/PAD-18AS/PAD-18AWDS | 16.00 | 20.00 | |
| 2x10 | PAD-20A/PAD-20AS/PAD-20AWDS | 18.00 | 22.00 | |
| 2x11 | PAD-22A/PAD-22AS/PAD-22AWDS | 20.00 | 24.00 | |
| 2x12 | PAD-24A/PAD-24AS/PAD-24AWDS | 22.00 | 26.00 | |
| 2x13 | PAD-26A/PAD-26AS/PAD-26AWDS | 24.00 | 28.00 | |
| 2x14 | PAD-28A/PAD-28AS/PAD-28AWDS | 26.00 | 30.00 | |
| 2x15 | PAD-30A/PAD-30AS/PAD-30AWDS | 28.00 | 32.00 | |
| ~ | ~ | ~ | ~ | |
| 2x20 | PAD-40A/PAD-40AS/PAD-40AWDS | 38.00 | 42.00 | |
| 電路 | 類型 | 尺寸(mm) | ||
| A | B | |||
| 2x2 | PAD-4Y | 2.00 | 6.00 | |
| 2x3 | PAD-6Y | 4.00 | 8.00 | |
| 2x4 | PAD-8Y | 6.00 | 10.00 | |
| 2x5 | PAD-10Y | 8.00 | 12.00 | |
| 2x6 | PAD-12Y | 10.00 | 14.00 | |
| 2x7 | PAD-14Y | 12.00 | 16.00 | |
| 2x8 | PAD-16Y | 14.00 | 18.00 | |
| 2x9 | PAD-18Y | 16.00 | 20.00 | |
| 2x10 | PAD-20Y | 18.00 | 22.00 | |
| 2x11 | PAD-22Y | 20.00 | 24.00 | |
| 2x12 | PAD-24Y | 22.00 | 26.00 | |
| 2x13 | PAD-26Y | 24.00 | 28.00 | |
| 2x14 | PAD-28Y | 26.00 | 30.00 | |
| 2x15 | PAD-30Y | 28.00 | 32.00 | |
| ~ | ~ | ~ | ~ | |
| 2x20 | PAD-40Y | 38.00 | 42.00 | |
