Wire To Board Dip Connector
| Specifications | |
| Rated voltage | 250V AC，DC |
| Rated current | 3A AC, DC |
| Contact resistance | 20m max |
| Insulation resistance | 1000M min |
| Withstand voltage | 1000V AC/minute |
| Ambient temperature | -25°C?+85°C |
| Materials | |
| Housing | Nylon UL94-V0(2) |
| Wafer | Nylon UL94-V0(2) |
| Terminal | Phosphor bronze, Tin plated |

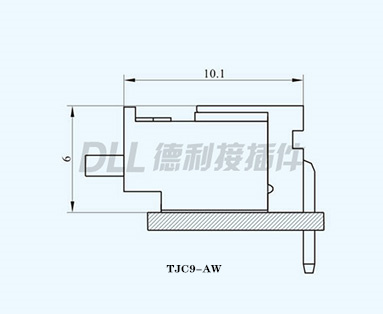

Drawing
Rosh
MSDS
| Circuits | Type | Dimensions(mm) | |
| A | B | ||
| 2 | TJC9-2A/TJC9-2AW/TJC9-2AWT | 2.50 | 5.00 |
| 3 | TJC9-3A/TJC9-3AW/TJC9-3AWT | 5.00 | 7.50 |
| 4 | TJC9-4A/TJC9-4AW/TJC9-4AWT | 7.50 | 10.00 |
| 5 | TJC9-5A/TJC9-5AW/TJC9-5AWT | 10.00 | 12.50 |
| 6 | TJC9-6A/TJC9-6AW/TJC9-6AWT | 12.50 | 15.00 |
| 7 | TJC9-7A/TJC9-7AW/TJC9-7AWT | 15.00 | 17.50 |
| 8 | TJC9-8A/TJC9-8AW/TJC9-8AWT | 17.50 | 20.00 |
| 9 | TJC9-9A/TJC9-9AW/TJC9-9AWT | 20.00 | 22.50 |
| 10 | TJC9-10A/TJC9-10AW/TJC9-10AWT | 22.50 | 25.00 |
| 11 | TJC9-11A/TJC9-11AW/TJC9-11AWT | 25.00 | 27.50 |
| 12 | TJC9-12A/TJC9-12AW/TJC9-12AWT | 27.50 | 30.00 |
| 13 | TJC9-13A/TJC9-13AW/TJC9-13AWT | 30.00 | 32.50 |
| 14 | TJC9-14A/TJC9-14AW/TJC9-14AWT | 32.50 | 35.00 |
| 15 | TJC9-15A/TJC9-15AW/TJC9-15AWT | 35.00 | 37.50 |
| Circuits | Type | Dimensions(mm) | |
| A | B | ||
| 2 | TJC9-2Y | 2.50 | 5.30 |
| 3 | TJC9-3Y | 5.00 | 7.80 |
| 4 | TJC9-4Y | 7.50 | 10.30 |
| 5 | TJC9-5Y | 10.00 | 12.80 |
| 6 | TJC9-6Y | 12.50 | 15.30 |
| 7 | TJC9-7Y | 15.00 | 17.80 |
| 8 | TJC9-8Y | 17.50 | 20.30 |
| 9 | TJC9-9Y | 20.00 | 22.80 |
| 10 | TJC9-10Y | 22.50 | 25.30 |
| 11 | TJC9-11Y | 25.00 | 27.80 |
| 12 | TJC9-12Y | 27.50 | 30.30 |
| 13 | TJC9-13Y | 30.00 | 32.80 |
| 14 | TJC9-14Y | 32.50 | 35.30 |
| 15 | TJC9-15Y | 35.00 | 37.80 |
